miniclave inert – 100 to 300ml

Reactor volume (glass vessel): 100 to 300ml (100ml / 200ml / 250ml / 300ml)
Other volumes on request
Pressure: -1 (FV) to +10 bar
Temperature: -20 °C to +150 °C
Material: Borosilicate glass 3.3, PTFE, PFA, FEP
Special executions are available.

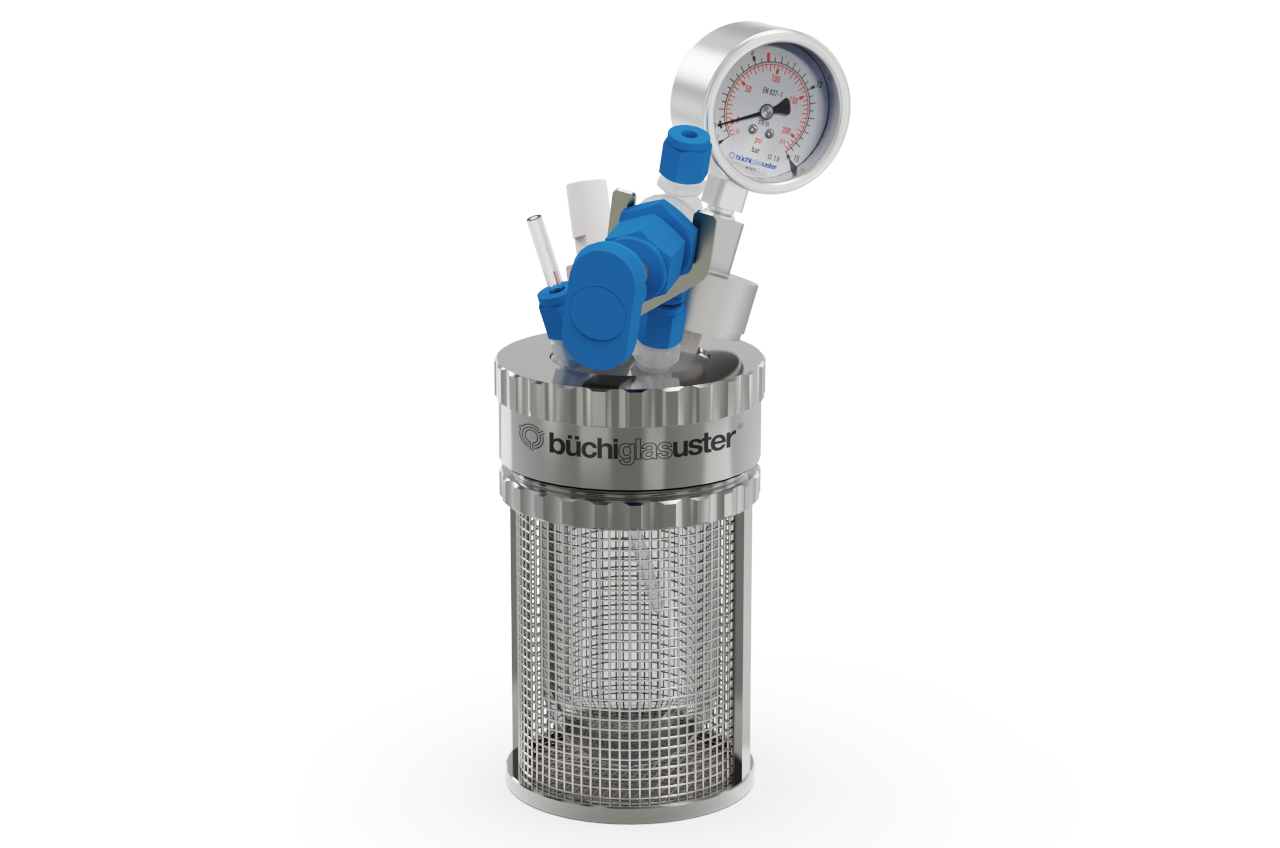

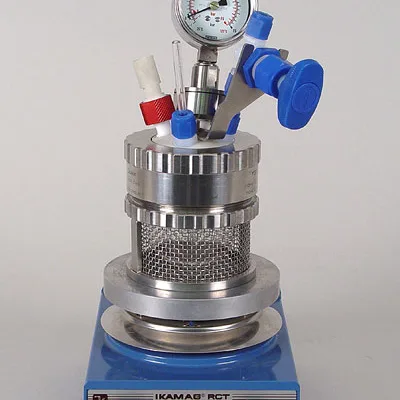

The miniclave inert metal-free pressure reactor system is designed for the use of interchangeable glass pressure vessels. All product-touched parts are made of inert (non-metallic) materials. Thanks to its safety features, safe reactions under pressure are guaranteed.

While allowing visual process control and monitoring, the glass reactors ensure high resistance against acids.

A wide range of accessories is available. Our product specialists are happy to help you define the right setup.

Standard Package:

  • Vessel holder with protective mesh
  • Glass pressure vessel
  • Union nut
  • Cover plate with 4 openings and standard setup
  • Swagelok fittings with bursting disc, manometer, 1 valve and thermowell
  • Tools and spare parts

Common Applications:
Hydrogenation reactor, polymerization reactor, synthesis reactor, catalyst testing/evaluation, catalytic reactor, corrosion measurement, crystallization, chemical research, petrochemical research, biopolymer research, nanoparticle synthesis, corrosion testing autoclave
