Lab-scale gas scrubbers

Volume mobile gas scrubber (volume scrubbing liquid): 6 / 10 / 20 l
Mobile gas scrubber (column diameter): DN 50 / 70 / 100
Stationary gas scrubber (volume scrubbing liquid): Customized according to process requirements
Stationary gas scrubber (column diameter): DN 50 / 70 / 100
Pressure: -1.0 (FV) to +0.5 bar
Temperature exhaust gas: -60°C to +200°C
Temperature scrubbing liquid: 0°C to +80°C
Material: Borosilicate glass 3.3 / PTFE / ETFE

Customized setups are available

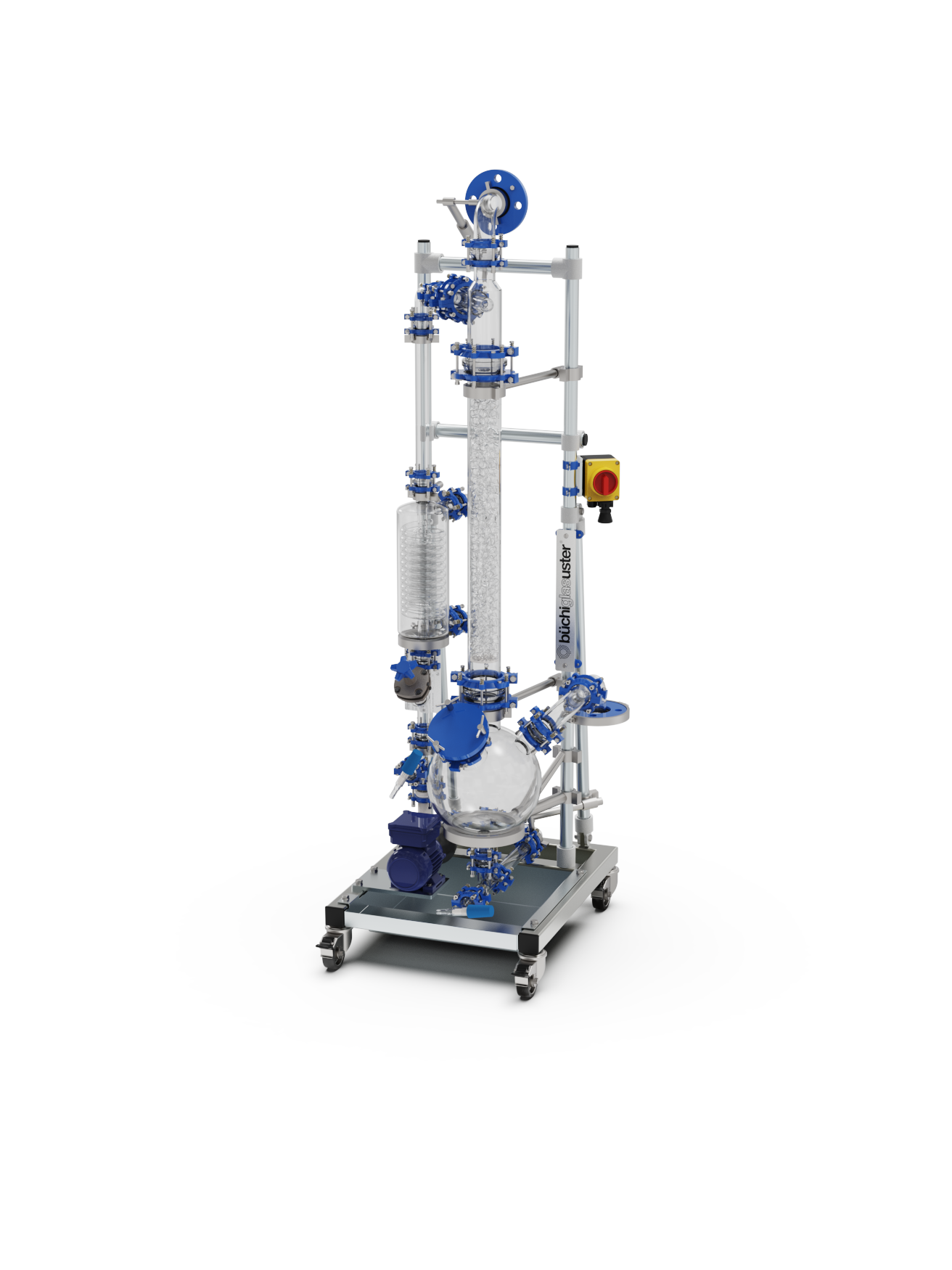

Gas scrubbers for the laboratory are used to neutralize corrosive exhaust gas from reactors, by stripping the exhaust of the substance (often HCL). Depending on the scrubbing liquid, they can be used for caustic or acidic vapors. Gas scrubbers are equipped with an ETFE lined, corrosion resistant magnetic coupled pump. The flow rate of the scrubbing liquid can be controlled with the built-in reducing valve. The scrubbing liquid temperature is maintained by a spiral cooler in the liquid circuit.

Standard Package:

  • Round glass flask
  • Absorption column, packed with raschig rings
  • Glass spiral cooler
  • ATEX circulation pump
  • Mobile stainless steel frame
  • Highly corrosion resistant
  • ATEX / CE
  • Complete documentation

Typical Applications:

  • Off-gas treatment
  • Neutralizing of exhaust gas
  • Stripping
  • Scale-up
  • Process development
