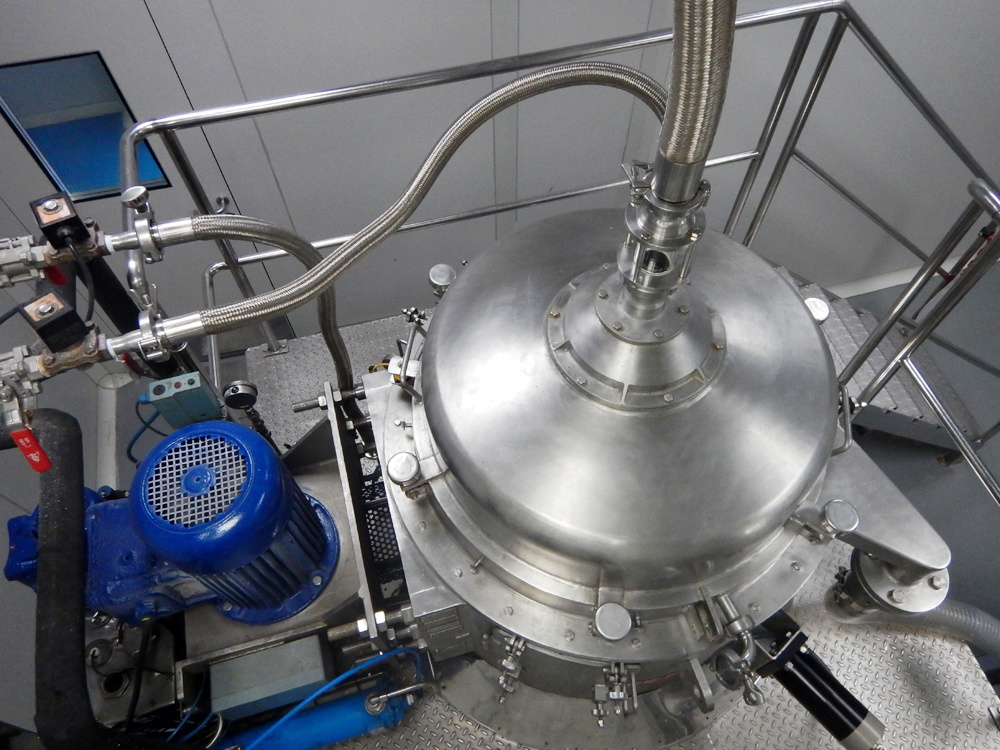

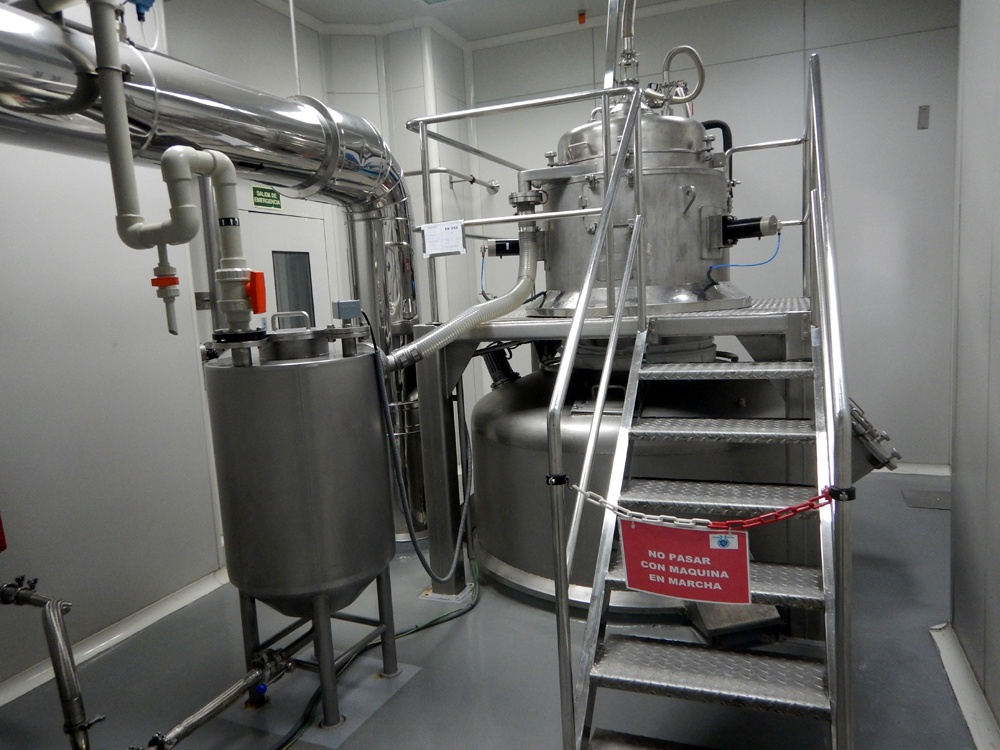

Continuous filtering vertical worm / screen centrifuges - RINA Serie 500

Riera Nadeu

Basket diameter: 300 mm to 750 mm
Throughput: 1.5 to 30 tons per hour
Centrifugal factor g: 1’500 to 2’100
Material: Hastelloy, stainless steel, others

The RINA 500 series is fitted with a conical rotor for the continuous solid-liquid separation of any crystalline, granular or fibrous products suspended in a liquid. These centrifuges achieve a high filterability index to reach solid concentrations ranging between 30% and 80% and for particle sizes between 50 and 500 microns.

The main characteristics are the high continuous throughput considering their compact dimensions and weight as well as their easy handling.

The RINA series 500 centrifuges are widely applicable, mainly in the chemical, pharmaceutical and food industry, for the separation of various organic and inorganic synthesis products.
